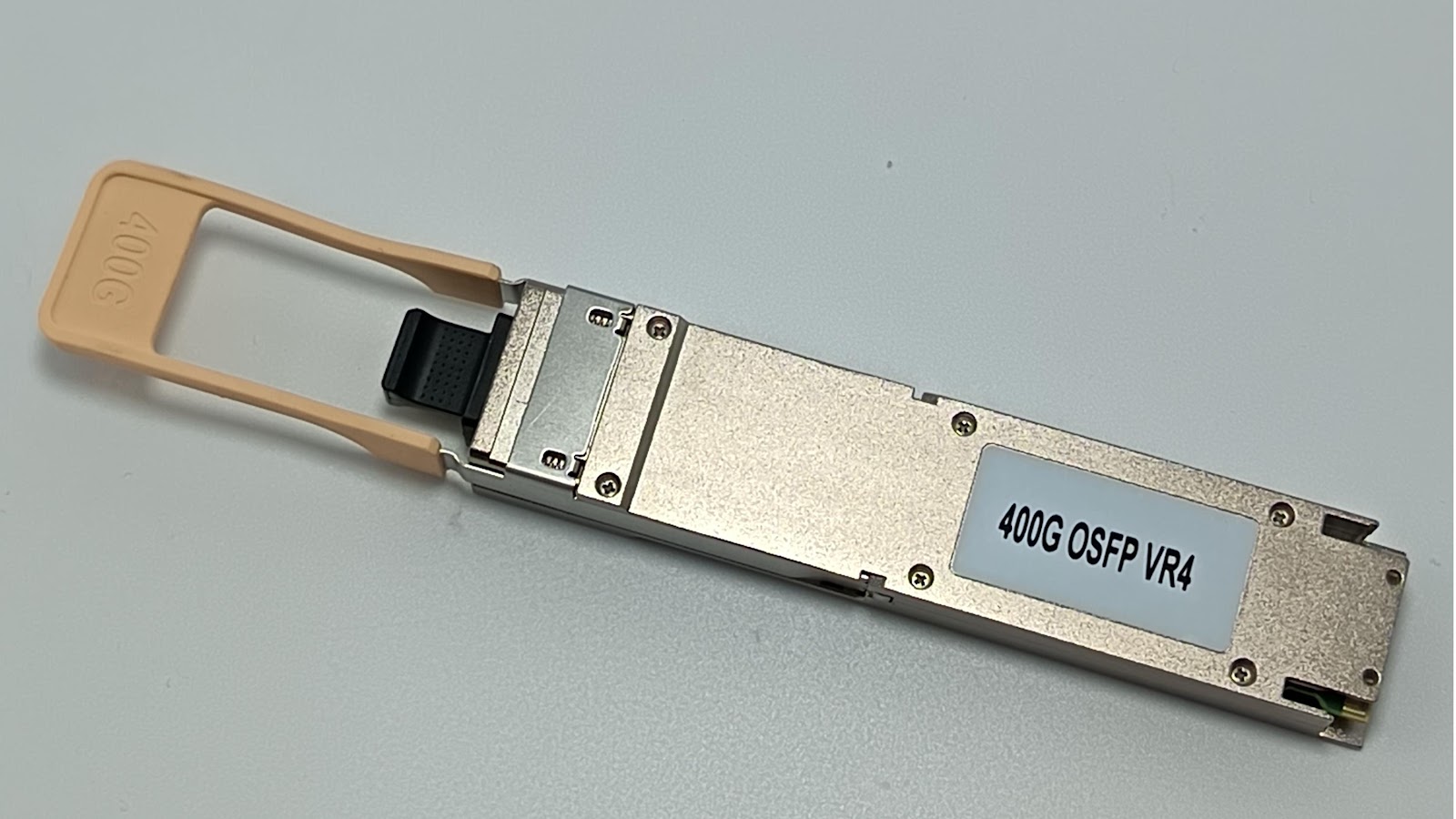

Advanced Testing Strategies for 400G Optical Transceiver Reliability

 The 400G Imperative: Speed, Complexity, and Hidden Risks

The shift to 400G optical transceivers is driven by AI, cloud computing, and 5G, pushing data centers toward higher density and lower power consumption. Unlike 100G-era NRZ signaling, 400G leverages PAM4 modulation—a 4-level pulse amplitude modulation where each symbol encodes 2 bits. This doubles spectral efficiency but introduces critical vulnerabilities:

  • Noise sensitivity: PAM4’s signal-to-noise ratio (SNR) is significantly worse than NRZ, amplifying the impact of minor distortions.

  • Jitter tolerance: Timing errors as small as 2.3 ps can collapse eye diagrams, causing catastrophic link failures.

  • Thermal drift: High-power lasers in compact form factors (e.g., QSFP-DD, OSFP) suffer wavelength shifts under thermal stress, degrading signal integrity.

Without exhaustive testing, these risks translate into network downtime, packet loss, and costly troubleshooting.




Next-Generation Test Methodologies: Beyond Basic Compliance

1. Transmitter Testing: TDECQ as the Gold Standard

TDECQ (Transmitter and Dispersion Eye Closure for PAM4) quantifies vertical eye closure after signals traverse worst-case optical channels. It predicts power margin loss and is mandated by IEEE 802.3bs. Unlike traditional eye-height metrics, TDECQ:

  • Emulates channel impairments like dispersion and reflections.

  • Requires a reference equalizer to recover stressed signals.

  • Targets strict symbol error ratio thresholds.

Tools: Simulation platforms model TDECQ compliance, enabling pre-silicon validation of laser drivers and DSP equalizers.

2. Receiver Robustness: Stress Eye Testing

Receivers must tolerate distorted inputs caused by fiber imperfections or crosstalk. Stress eye testing artificially degrades signals using:

  • Vertical Eye Closure Penalty (VECP): Simulates amplitude noise.

  • Jitter parameters: Injects deterministic and random timing errors at BER thresholds.

  • OOMA (Optical Modulation Amplitude): Validates sensitivity to power fluctuations.

For 400G standards, receivers must achieve ultra-low BER under stressed conditions—verified via multi-hour test runs.

3. System-Level Validation: FEC and Real-World Emulation

Forward Error Correction (FEC) is essential for PAM4’s elevated raw BER. Testing now includes:

  • FEC correction efficacy: Measuring packet loss rates post-correction.

  • Protocol conformance: Validating CMIS management interfaces and interoperability.

  • Traffic resilience: Advanced tools simulate bursty data flows and latency spikes to mimic AI workloads.




The Automation Edge: Scaling Precision in Manufacturing

Manual testing is impractical for 400G’s multi-lane parallelism. Automated Test Equipment (ATE) systems address this via:

  • High-speed multi-port validation: Simultaneous testing of multiple 400G links.

  • Intelligent diagnostics: Integrated platforms auto-identify faults in optics or PCBs.

  • Yield optimization: Logging dozens of parameters per module for statistical process control.


Reliability in the AI Era: New Frontiers

Thermal and Environmental Stressing

As power budgets tighten, testing must address:

  • LPO (Linear Drive Pluggable Optics): Validating driver linearity without DSP.

  • Telecom-grade standards: New tests for cyclic humidity, corrosion, and dust ingress—critical for edge data centers.

Emerging Failure Modes

  • Electromigration: Accelerated aging tests screen aging effects.

  • Chromatic dispersion: Multi-mode fibers require modal compensation testing.



Case Study: Validating a 400G DR4 Transceiver

A recent study tested a lens-optimized DR4 module using:

  1. Signal modeling: Tuned driver impedance to minimize reflections.

  2. Stressed BER tests: Achieved zero errors at 26.5625 Gbaud.

  3. Environmental cycling: Operated error-free across extreme temperatures.





Conclusion: Testing as Strategic Advantage

400G transceiver testing has evolved from basic compliance to a system-level discipline combining optical physics, DSP analytics, and reliability science. With 800G deployments accelerating, methodologies like TDECQ simulation, FEC-aware BER, and certified environmental tests will separate leaders from laggards. As thermal densities rise and modulation schemes grow complex, investing in test automation isn’t optional—it’s the core enabler of network resilience.
