Common Applications of Multi-Core Fiber Coupling Connectors



In an era where data bandwidth demands surge exponentially, multi-core fiber coupling connectors have emerged as a pivotal component in modern optical networks. These connectors enable the efficient, reliable coupling of multiple optical fibers within a single ferrule or module, significantly enhancing port density and simplifying installation. In this blog, we will explore the common applications of multi-core fiber coupling connectors, ensuring our discussion is grounded in real-world use cases.

Table of Contents

1. Introduction to Multi-Core Fiber Coupling Connectors

2. Key Advantages of Multi-Core Fiber Coupling Connectors

3. Data Center Infrastructure

4. Telecommunications and Service Provider Networks

5. High-Performance Computing (HPC) and AI Clusters

6. Passive Optical Networks (PON) and Fiber to the Home (FTTH)

7. Industrial Automation and Control Systems

8. Medical Imaging and Healthcare

9. Military, Aerospace, and Defense

10. Metropolitan Area Networks (MAN) and Campus Networks

11. Research Labs and Scientific Instrumentation

12. Choosing the Right Multi-Core Fiber Coupling Connector

13. Conclusion

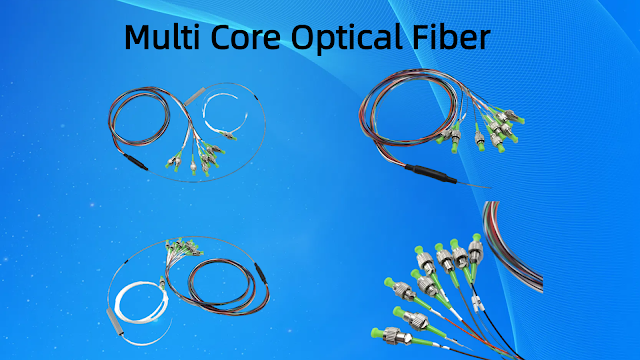

Introduction to Multi-Core Fiber Coupling Connectors

Multi-core fiber coupling connectors, sometimes referred to as multi-fiber push-on/pull-off connectors (e.g., MPO/MTP®), enable the simultaneous coupling of multiple individual optical fibers within a single connector interface. Unlike traditional single-fiber connectors (such as LC, SC, or ST), multi-core connectors can house anywhere from 4 to 72 fibers (and beyond), all aligned in a compact, precision-engineered ferrule.

This design advantage drastically reduces cabling complexity, patch panel real estate, and installation time. As data center operators, telecom providers, and enterprise network managers face mounting pressure to scale bandwidth while maintaining cost-efficiency, multi-core fiber coupling connectors have become the de facto standard for high-density cabling systems.

Key Advantages of Multi-Core Fiber Coupling Connectors

Before diving into specific applications, it is important to understand why multi-core fiber coupling connectors are preferred in so many scenarios:

• High Port Density: One MPO/MTP® connector can replace up to 12 individual LC connectors, significantly reducing rack space used by patch panels.

• Scalability: As network demands grow, multi-core solutions facilitate easy migrations (e.g., from 10 Gbps to 40 Gbps or 100 Gbps) by swapping fan-out harnesses rather than re-cabling entire runs.

• Simplified Installation and Maintenance: Fewer discrete connections mean less potential for misalignment or connector damage. Technicians can manage a single connector rather than dozens.

• Cost Efficiency: Though the per-connector cost of a multi-core connector may be higher than a single-fiber connector, the labor savings and reduced infrastructure often justify the investment, especially in large-scale deployments.

• Reduced Signal Loss: Precision-manufactured multi-fiber ferrules maintain strict tolerances, ensuring minimal insertion loss and back reflection even in high-fiber-count applications.

These advantages make multi-core fiber coupling connectors indispensable across a spectrum of industries.

Data Center Infrastructure

1. Top-of-Rack (ToR) and End-of-Row (EoR) Deployments

Data centers rely on massive interconnectivity between servers, storage arrays, and network switches. Multi-core fiber coupling connectors—most commonly the 12-fiber MPO/MTP® standard—are widely used in Top-of-Rack (ToR) and End-of-Row (EoR) cabling architectures.

1. High-Speed Server-to-Switch Connectivity

   • 40 Gbps and 100 Gbps Links: Modern servers often use quad-LC breakout cables that fan out from an MPO/MTP® connector on the switch to four LC connectors on the server’s Network Interface Cards (NICs). This enables cost-effective 40 Gbps links over existing 10 Gbps infrastructure.

   • Simplified Upgrades: When greater bandwidth is required (e.g., 400 Gbps), data center operators can replace MPO/MTP® trunks and harnesses without overhauling the entire cabling plant.

2. High-Density Patch Panels

   • MPO/MTP® patch panels can occupy a single rack unit (1 RU) while supporting up to 72 fibers (six MPO ports × 12 fibers each). This high density allows data centers to maximize usable floor space and reduce cooling costs by consolidating cabling infrastructure.

2. Spine-Leaf Architectures

Large-scale, Clos-based spine-leaf architectures benefit from the uniformity and flexibility of multi-core connectors:

• Inter-Switch Links (ISLs): MPO/MTP® connectors are used for high-bandwidth interconnects between leaf switches and spine switches, enabling low-latency, high-throughput fabric topologies.

• Simplified Patching: MPO/MTP® patch cords can be swapped quickly in case of a failed link or when reallocating bandwidth to different server pods.

Telecommunications and Service Provider Networks

Telecom and service provider networks demand robust, scalable fiber infrastructure to accommodate subscriber growth and continually increasing bandwidth:

1. Central Office and Data Aggregation Hubs

   • Multi-core fiber coupling connectors are used at Central Offices (COs) to interconnect Optical Line Terminals (OLTs), Digital Subscriber Line Access Multiplexers (DSLAMs), and backbone routers.

   • The high fiber-count capability—up to 72 or even 144 fibers per connector—streamlines cross-connects and enables dense aggregation of local loop traffic.

2. Optical Transport Networks (OTN)

   • Service providers deploying OTN equipment for 100 Gbps, 200 Gbps, and 400 Gbps links benefit from MPO/MTP® connections that align with the multi-fiber interfaces on transponders and muxponders.

   • By adopting standardized multi-core connectors, operators ensure interoperability between gear from different vendors, reducing spares inventory and enabling plug-and-play deployments.

3. Wireless Backhaul and Fronthaul

   • As 5G rollouts continue, the fronthaul between remote radio units (RRUs) and baseband units (BBUs) requires high-density fiber solutions. MPO/MTP® connectors attach to WDM multiplexers, supporting multiple wavelength channels over a single fiber strand.

   • Multi-core coupling connectors facilitate scalable, compact WDM-based fronthaul architecture.

High-Performance Computing (HPC) and AI Clusters

HPC clusters and AI training pools demand ultra-low-latency, high-throughput interconnects. Multi-core fiber coupling connectors support these needs in several ways:

1. Compute Node Interconnects

   • Systems using InfiniBand or high-speed Ethernet (e.g., 100 GbE, 200 GbE, 400 GbE) often rely on multi-core fiber to connect racks of GPU servers. Each rack may contain dozens (or hundreds) of GPUs, requiring massive bandwidth.

   • MPO/MTP® trunk cables carry aggregated data streams across cluster racks, simplifying cable management and maintaining signal integrity across the HPC fabric.

2. Top-of-Rack Switches to Core Routers

   • In hyper-converged HPC environments, ToR switches aggregate compute traffic via MPO/MTP® connections to core routers. Multi-fiber connectors ensure that higher-speed optics (e.g., QSFP-DD, OSFP modules) can be deployed without increasing physical cabling complexity.

3. Rapid Reconfiguration

   • HPC workloads frequently shift between AI training, scientific simulation, and big data processing. Multi-core connectors enable engineers to reconfigure cluster topologies quickly by swapping pre-terminated harnesses rather than terminating individual fibers onsite.

Passive Optical Networks (PON) and Fiber to the Home (FTTH)

In PON and FTTH deployments, service providers use multi-core fiber coupling connectors to streamline network terminal points:

1. Optical Line Terminals (OLTs)

   • At the OLT facility, multi-fiber MPO/MTP® connectors aggregate splitter outputs, enabling a single OLT port to serve multiple splitter trees. This reduces rack space and simplifies cable routing in high-subscriber-density areas.

2. Fiber Distribution Hubs (FDHs)

   • MPO/MTP® connectors are integrated into fiber distribution hubs to connect feeder fibers to drop fibers leading to households. Each MPO port can accommodate multiple 2.5 Gbps GPON or 10 Gbps XGS-PON links, allowing flexible capacity planning as subscriber demand increases.

3. Residential Optical Network Units (ONUs)

   • In some dense urban deployments, modified multi-core couplers at the ONU side reduce the number of discrete connectors needed for multiple service streams (e.g., broadband Internet, IPTV, VoIP).

Industrial Automation and Control Systems

Modern industrial environments demand reliable, interference-free data communication between sensors, controllers, and actuators. Multi-core fiber coupling connectors facilitate these requirements:

1. Factory Floor Gigabit Ethernet Rings

   • Automated assembly lines often use ring topologies with high-speed industrial Ethernet. MPO/MTP® fiber connectors connect multiple nodes—like programmable logic controllers (PLCs), human-machine interfaces (HMIs), and robots—while maintaining small footprint in harsh environments.

2. Harsh Environment Enclosures

   • Outdoor or corrosive environments benefit from ruggedized enclosures housing multi-core connectors. Encased MPO/MTP® modules resist dust, moisture, and mechanical stress, ensuring consistent data flow for process monitoring in oil & gas, chemical, or mining operations.

3. Machine Vision Systems

   • High-resolution cameras and vision processors require multi-lane, high-bandwidth links. By using multi-core coupling connectors, integrators can bundle multiple 10 GigE Vision lanes into one single cable run, reducing clutter and simplifying maintenance.

Medical Imaging and Healthcare

Healthcare facilities rely on high-resolution imaging modalities (e.g., MRI, CT, ultrasound) to transfer vast amounts of data to diagnostic workstations. Multi-core fiber coupling connectors play a key role in these applications:

1. Diagnostic Imaging Centers

   • Throughput requirements for PACS (Picture Archiving and Communication Systems) often exceed 10 Gbps per modality. MPO/MTP® trunks enable the aggregation of multiple imaging device outputs into a single backbone fiber, ensuring real-time image transfers and reduced latency.

2. Telemedicine and Remote Consultation

   • Multi-fiber connectors support the bandwidth demands of live HD or 4K video streams for remote surgeries and telepathology consultations. By providing multiple 10 GbE channels in one connector, healthcare networks ensure uninterrupted, high-quality streaming.

3. Hospital Backbone Networks

   • Hospital campuses often span multiple buildings. MPO/MTP® cabling between data closets ensures that critical patient data—such as EHR (Electronic Health Records) access, high-resolution imaging, and IoT device telemetry—flows securely and with minimal latency.

Military, Aerospace, and Defense

In defense and aerospace sectors, ruggedness, reliability, and security are paramount. Multi-core fiber coupling connectors are engineered to meet these stringent requirements:

1. Tactical Communication Systems

   • Mobile command centers and field-deployable shelters frequently use ruggedized MPO/MTP® connectors that can withstand vibration, shock, and extreme temperatures. Bundling multiple fibers reduces setup time and lowers the chance of connector damage under battlefield conditions.

2. Avionics and In-Flight Networks

   • Modern aircraft and unmanned aerial vehicles (UAVs) leverage high-speed fiber links for avionics data buses, sensor arrays, and cockpit-to-cabin entertainment systems. Multi-core connectors minimize weight and volume—critical considerations in aerospace design—while providing redundant, high-bandwidth pathways.

3. Secure Data Transport

   • Encrypted communication between defense facilities and satellites or between on-ground stations and drones utilizes high-density optical cabling with MPO/MTP® connectors. Multi-core fiber reduces interception risk by consolidating multiple channels into a single, tamper-resistant conduit.

Metropolitan Area Networks (MAN) and Campus Networks

City-scale networks and large corporate campuses demand scalable, cost-effective fiber infrastructure:

1. Inter-Building Links

   • Campus networks—universities, government complexes, research parks—often interconnect multiple facilities using dark-fiber rings. Multi-core fiber coupling connectors on terminal equipment allow network administrators to provision new services (VoIP, CCTV, data, wireless backhaul) simply by patching new MPO/MTP® modules.

2. Edge Data Centers and Colocation Facilities

   • In city-edge data centers or colocation sites, clients frequently lease fractional rack spaces, each requiring high-density fiber connectivity. MPO/MTP® bulkheads in meet-me rooms support dozens of clients while maintaining a compact footprint, enabling efficient cross-connects.

3. Smart City Infrastructure

   • For applications like traffic monitoring, public safety networks, and wide-area WiFi, multi-core fiber connectors enable rapid deployment of edge nodes and aggregation points. The ability to pre-terminate long fiber runs at the factory with MPO/MTP® ends ensures consistent performance and lowers field termination errors.

Research Labs and Scientific Instrumentation

Academic, national, and corporate research institutions demand precision and high bandwidth for experimental setups:

1. Particle Accelerators and Light Sources

   • Facilities such as synchrotron radiation labs transfer terabytes of data per experiment. Multi-fiber MPO/MTP® cables connect detectors, data acquisition systems, and analysis clusters, ensuring synchronized data flow and time-stamping accuracy.

2. Genomic Sequencing Centers

   • High-throughput sequencers produce massive datasets requiring real-time transfer to compute nodes. MPO/MTP® trunk cables support multiple 10 Gbps or 25 Gbps lanes, accommodating next-generation sequencers that can output hundreds of gigabytes per run.

3. Astronomy and Radio Telescopes

   • Large arrays of radio telescopes or optical telescopes require synchronized time division multiplexing to combine signals from multiple antennas. Multi-core fiber connectors interface analog-to-digital converters with central correlators, facilitating sub-nanosecond timing accuracy across hundreds of antennas.

Choosing the Right Multi-Core Fiber Coupling Connector

With so many applications, selecting an appropriate multi-core fiber coupling connector involves considering several factors:

1. Fiber Count and Density

   • Standard MPO/MTP® connectors come in 8-, 12-, 24-, 48-, 72-, and 144-fiber configurations. Data centers typically use 12- or 24-fiber variants, while telecom central offices may require higher counts.

2. Connector Gender and Polarity

   • Proper gender (male/female) and polarity (Type A, B, C) ensure that transmitters and receivers align correctly. Misalignment can result in channel mapping errors, leading to network outages.

3. **Insertion Loss and Return Loss

   • Look for connectors with ultra-low insertion loss (≤ 0.75 dB per connection) and high return loss (≥ 60 dB for APC-style ferrules) to maintain signal integrity in long-haul or high-speed links.

4. Ruggedness and Environmental Ratings

   • Industrial, military, and outdoor deployments often require IP-rated enclosures or hardened shell connectors to withstand temperature extremes, moisture, dust, and mechanical shock.

5. Compatibility and Interoperability

   • Adhering to TIA/EIA-604 (FOCIS) and IEC 61754-7 standards ensures that connectors from different vendors will mate properly. For example, MTP® (a registered trademark of US Conec) is backward-compatible with MPO interfaces but may offer enhanced polishing and alignment features.

6. Ease of Maintenance and Testing

   • Testable MPO/MTP® connectors with integrated bulkheads allow technicians to certify link performance without disturbing the fiber. This feature is especially beneficial in large-scale, mission-critical networks.

Conclusion

Multi-core fiber coupling connectors have revolutionized the way modern networks are designed, deployed, and maintained. By consolidating multiple fibers into a single, high-density interface, these connectors address the escalating demands of data centers, telecommunications networks, HPC clusters, industrial systems, and beyond. When selecting a multi-core connector, it is crucial to evaluate fiber count, polarity, insertion loss, environmental ratings, and standards compliance to ensure long-term reliability and performance.

From enabling 400 Gbps interconnects in spine-leaf architectures to facilitating real-time data transfer in genomic sequencing centers, the versatility and efficiency of multi-core fiber coupling connectors make them indispensable in today’s high-speed world. As bandwidth requirements continue to grow, network architects and engineers can rely on multi-core solutions—such as Fibrecross’s precision-engineered MPO/MTP® connectors—to deliver scalable, cost-effective, and future-proof optical infrastructure.

By understanding these common applications and the advantages they provide, you can make informed decisions when planning and deploying your network. Whether you are building a new data center, upgrading a telecommunication facility, or designing a cutting-edge research lab, multi-core fiber coupling connectors will serve as a cornerstone of your optical connectivity strategy.
