What is an 800G AOC cable? （2025）

An 800G Active Optical Cable (AOC) is a high‑performance, fiber‑optic interconnect designed to support data rates up to 800 Gbps over short‑reach links (typically up to 100 m). Unlike passive copper cables, AOC cables incorporate optical transceivers integrated into the cable ends, enabling greater bandwidth, lower power consumption, and immunity to electromagnetic interference.

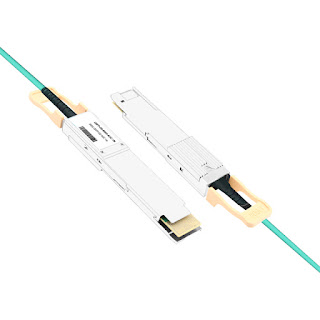

800G AOC Cable

Key Features

• Data Rate: 800 Gbps (aggregate)

• Form Factors: OSFP (Octal Small Form‑factor Pluggable) and QSFP‑DD (Quad Small Form‑factor Pluggable Double Density)

• Reach: Typically 5 m to 100 m (depending on fiber grade and transceiver design)

• Connector Type: Integrated MPO/MTP multi‑fiber connectors

• Power Consumption: ~5 W per end (varies by vendor)

How It Works

1. Electrical‑to‑Optical Conversion
   Each end of the cable contains a miniaturized optical transceiver. High‑speed electrical signals from the switch or server are converted into optical pulses by laser diodes.

2. Optical Transmission
   The pulses travel through multimode fiber cores within the cable bundle, providing low‑loss, high‑bandwidth transport.

3. Optical‑to‑Electrical Conversion
   At the far end, photodiodes convert the optical pulses back into electrical signals, completing the link.

This integrated design eliminates separate transceiver modules plus fiber patch cords, simplifies deployment, and reduces points of failure.

OSFP vs. QSFP‑DD for 800G AOCs

Feature	OSFP AOC	QSFP‑DD AOC
Port Density	Lower (40 mm pitch)	Higher (21 mm pitch)
Thermal Design Power	Slightly higher headroom	More compact, efficient
Industry Adoption	Preferred in hyperscale	Favored in enterprise/spine
Compatibility	OSFP‑capable ports only	QSFP‑DD backward to QSFP28

Advantages of 800G Active Optical Cables

1. Ultra‑High Bandwidth
   Supports the latest 800 Gbps Ethernet standards for AI/ML clusters, high‑performance computing (HPC), and hyperscale data centers.

2. Lower Latency & Jitter
   Optical transmission minimizes signal skew and maintains consistent latency across all lanes.

3. Power Efficiency
   Active optics consume less power per bit compared to copper, reducing overall data center PUE (Power Usage Effectiveness).

4. EMI Immunity
   Fiber cores are immune to electromagnetic interference, ensuring data integrity in dense rack environments.

5. Simplified Infrastructure
   Pre‑terminated, factory‑tested cables cut deployment time and eliminate field terminations or cleaning.

Real‑World Applications

• Top‑of‑Rack (ToR) Links
  Connect server blades to leaf switches with 800 G uplinks, supporting bandwidth‑hungry workloads like distributed storage and in‑memory databases.

• Spine‑Leaf Architectures
  Aggregate multiple 800 G links in the spine layer to handle east‑west traffic in modern network fabrics.

• AI and HPC Clusters
  Provide the ultra‑dense, low‑latency interconnects required for GPU‑to‑GPU communication and large‑scale model training.

• 5G and Edge Data Centers
  Support edge aggregation sites where space, power, and thermal budgets are constrained.

Comparison with 800G DAC Cables

While 800G Direct Attached Copper (DAC) cables offer cost advantages for very short reaches (<5 m), they suffer from:

• Higher power draw per bit

• Bulkier gauge and limited bend radius

• Susceptibility to EMI

In contrast, 800G AOCs extend reach up to 100 m, consume less power, and maintain signal integrity over longer distances.

Installation Best Practices

1. Bend Radius
   Maintain a bend radius ≥ 10× cable diameter to avoid microbending loss.

2. Cleanliness
   Even though AOCs are factory‑sealed, ensure ports are free of dust before mating.

3. Port Compatibility
   Verify switch/router OSFP or QSFP‑DD slot compatibility and firmware support for 800 G speeds.

4. Environmental Conditions
   Operate within the recommended temperature range (0 °C to 70 °C for most industrial‑grade cables).

Frequently Asked Questions

Q1: Can I mix OSFP and QSFP‑DD AOCs in the same rack?
No. OSFP and QSFP‑DD use different port form factors. Use breakout or transponder units if you need to interconnect between them.

Q2: What fiber type is used inside an 800G AOC?
Typically OM4 or OM5 multimode fiber, optimized for low-loss, high‑bandwidth 50 µm cores.

Q3: How do I test an 800G AOC cable?
Use a calibrated optical time‑domain reflectometer (OTDR) or a vendor‑provided test kit that supports 800 G lane rates.

Conclusion

An 800G Active Optical Cable is the de facto choice for next‑generation data centers demanding ultra‑high throughput, energy efficiency, and reliable performance. By integrating optical transceivers directly into the cable assembly, AOCs streamline deployments and future‑proof network infrastructures. Whether you choose OSFP or QSFP‑DD, understanding the key advantages and best practices will ensure you harness the full potential of 800 Gbps connectivity.
